The SWB bridge plug is compact, small OD and easy to be drilled out. The bridge plug can be set securely in the different specification casing. A ratchet lock ring holds the setting force in the plug. The integral packing element and metal back-up ring combine for a superior seal system. The integral slip can avoid premature setting and can be easily drilled out.

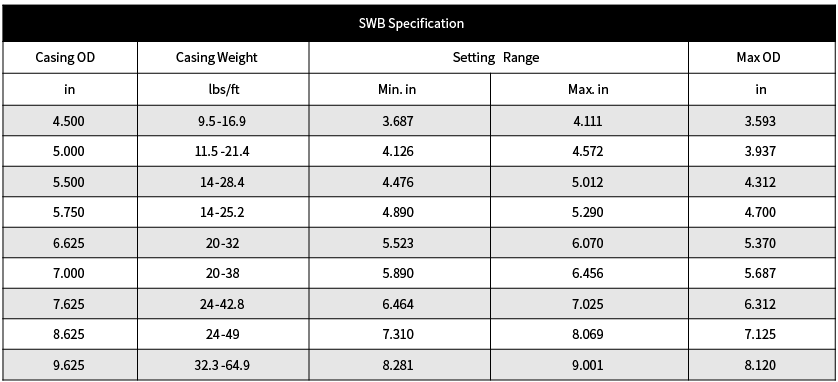

The SWB bridge plug is available for 4 1/2” to 9 5/8” casing, which is used for temporary or permanent plugging.
The bridge plug can be directly set by HSB Hydraulic Setting Tool or Baker J Hydraulic Setting Tool.
Can be easily milled and drilled out.
A ratchet lock ring secure dynamic setting force.
The integral packing element and metal back-up ring combine for a superior seal system.
Can withstand higher pressure, less than or equal to 7” specifications can withstand highest differential pressure 10,000 psi.
