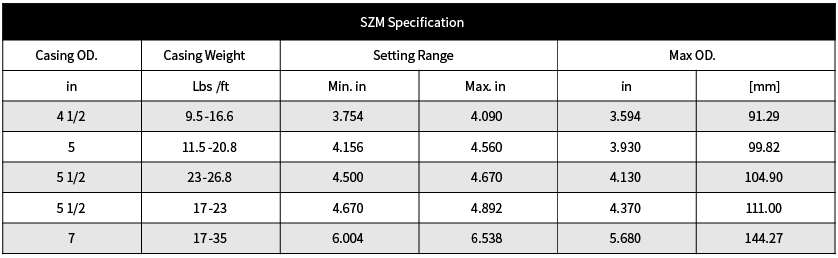

The SZM frac bridge plug uses a large amount of composite material which with cast iron slips, which is compact, small OD, light weight and easy to be drilled out. Specially designed three piece packing element and metal back-up ring combine for a superior seal system. The SZM fracbridge plug is available for 4 1/2” to 7” casing.

Features:

• The three piece packing element and metal back-up ring combine for a superior seal system.

• Drillable metal material slip for easy drillability and flowback; anchoring is more reliable.

• Structure compact and running easy.

• Composite material for easy drillability.

• The bridge plug can be directly set by SUNRISE HSB hydraulic Setting Tool or Baker J Hydraulic Setting Tool.
